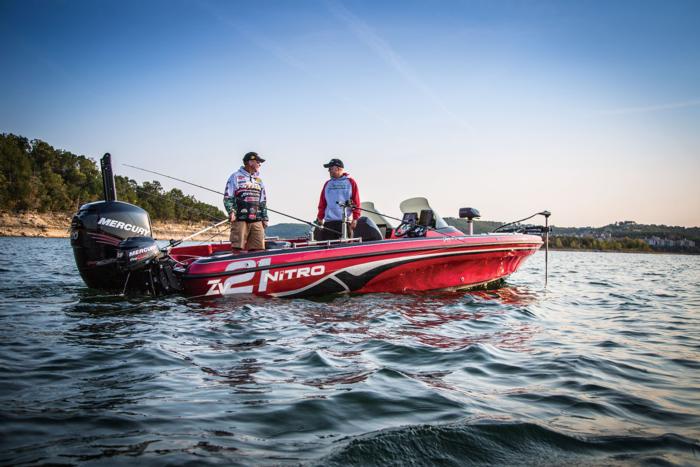

Nitro ZV21 multispecies



Watch out, walleye.

NITRO® now has your number, too!

Using input from the world’s leading walleye anglers, NITRO® is bringing its celebrated performance fiberglass boat heritage to a whole new group of anglers with the NEW ZV 21.

Customize This Boat

Click Here to Build Your Boat

Customize this boat on the manufacturer's website.

When you're done, print the summary page and bring it to us.

Share This Boat

Overview

2015 NITRO ZV 21

w/ 250 XL OptiMax Pro XS Motor and Trailer




Specifications
Length 21' 7''
Beam 100"
Bottom width 77"
Max. recommended HP 350 HP
Fuel capacity 64 Gallons
Max. person capacity 6 Persons
Max. person weight 1200 Lbs.
Max. weight capacity 2500 Lbs.
Depth inside 25"
Transom height 28"
Deadrise 18 Degrees
Draft 18"
Approx. weight 2900 Lbs.
Approx. package weight 5500 Lbs.
Package height 6' 9''
Package width 8' 6''
Storage length 24' 7''





Colors
Combo PR100
Cost No Charge
Bottom Onyx
Deck Inset Black Mist
Deck Main Candy Apple Red
Deck Pin Sterling
Hull Accent N Black Mist
Hull Aft Upper Candy Apple Red
Hull Inset Sterling

Hull Lower Candy Apple Red





Selected Options
Additional options were not selected.




Standard Features
Comfort, Convenience & Peace of Mind
NMMA Certified
Flotation meets or exceeds NMMA & U.S. Coast Guard requirements
EPA-compliant fuel system
3 stainless steel drink holders
4 stainless steel pull-up cleats
Anti-fatigue matting below bow & cockpit carpet

Emergency boarding ladder
Non-skid bow mat
Stainless steel passenger grab handle
Fire extinguisher
Horn
Console(s)
RAM®-mounted Lowrance® HDS-7 fishfinder w/GPS
NEW digital keypads w/integrated master power switch
Hydraulic steering w/custom tilt wheel
Below-console footrest w/non-skid mat
Custom-molded port & starboard modular consoles w/2-tone paint scheme
Heavy-duty molded, tinted windscreens
NEW Veethree® multi-function instrumentation gauges w/speedometer/fuel gauge, tachometer/trim gauge, voltmeter gauge & water pressure gauge
Emergency start switch for transferring power from cranking battery to trolling battery

Side-mounted LED courtesy light
Oversized carpeted, lockable port glovebox
Port & starboard below-console shelves
Helm below-console recess for optional Hot Foot® pedal
Soft-touch waterproof digital switches
Space to mount additional electronics
2-tone paint scheme
Construction & Exterior
Heavy-duty rub rail
Full-width fiberglass-encapsulated composite transom
Transverse & longitudinal fiberglass foam-filled stringer system

Deck & hull chemically bonded & mechanically fastened
Hand-laid, heavy-duty performance hull w/reinforced sides
Electrical
Redundant automatic bilge pump system w/dual 1600 GPH (6,056.66 LPH) pumps
Heavy-duty Interstate® 27M-XHD starting battery
3 heavy-duty Interstate® Series SRM-29 trolling batteries
4-bank (35 amps total) onboard battery charger w/exterior receptacle
Automotive style, labeled fuse panel w/cover
Bow panel w/trolling motor receptacle & trim switch
Digital switching (except master power & accessory)
Electrical system w/Power Management Enclosure (PME)

LED cockpit courtesy lights
Manual LED lighting in bow storage compartments
Stowable navigation lights
Trolling motor power distribution panel w/50-amp circuit breaker
Waterproof Deutsch plugin gauge connectors
Water-resistant connectors on all pumps & navigation lights w/protective abrasion-resistant wrap
Console-mounted 12V accessory outlet
Interior
22-oz. plush, marine-grade, cut pile carpet on decks & floor
Carpet edge trim
3-level center rod locker w/organizers for rods up to 8' (2.44 m) long
Adjustable helm & passenger seats
Between-console foldout storage drawer w/two 3600 tackle boxes
Elevated bow casting deck
Bike seat w/power pedestal
Fold-down molded fishing seat w/power pedestal
Lift-out, molded aft storage boxes that will accept tackle trays

Passenger rod ramp w/rod handle organizer & hold-down strap
Patent-pending integrated port net holder
Port & starboard bow lockers w/lid assists
Port & starboard midship insulated storage boxes designed to accept tackle trays
Port bow cooler w/removable tray
Room to mount additional electronics at bow
Stainless steel fore & aft rails (port & starboard)
Stainless steel lockable compression latches
Starboard tool holder
Livewell Systems
5.5-gal. (20.82 L) insulated bow baitwell w/removable bucket
26-gal. (98.42 L) insulated aft Guardian™ anti-slosh livewell w/removable bait bucket
Aeration system
Pump-out systems (baitwell & livewell)

Oxygen generators (baitwell & livewell)
Rotomolded livewell w/rounded corners
Two 500 GPH (1,892.71 LPH) aerator/fill pumps w/timers (1 for baitwell, 1 for livewell)
Two 750 GPH (2,839.06 LPH) recirculator pumps w/timers (1 for baitwell, 1 for livewell)
Performance
Stainless steel propeller
Transom designed for Kicker motor application
Deep V performance hull w/Rapid Planing System transom
3" (7.62 cm) adjustable jack plate (Verado® engines only)

10" (25.40 cm) adjustable jack plate (OptiMax® engine only)
Lifting strakes to maximize overall handling & performance
Rigging tube
Trailer
Custom-fit, factory-matched, tandem-axle NITRO® drive-on trailer w/color-coordinated powder-coat finish & GALVASHIELD® corrosion protection
Surge disc brakes on 2 axles
All-welded tubular frame for a unitized structure w/exceptional strength-to-weight ratio
14" (35.56 cm) custom NITRO aluminum wheels w/radial tires
NEW spare tire carrier w/matching spare tire
Space-saving swing-away tongue to reduce storage length

NEW fiberglass fender design w/integrated back-up lights
No Touch Vortex hub lubrication system for no-maintenance peace of mind w/6-yr. 100,000-mile limited warranty
Submersible LED lights
Outboard motor support to reduce hull & transom stress while towing
Carpeted bunks & fender boards to protect hull
Heavy-duty winch w/non-binding nylon strap & bow safety strap
Trolling Motor
Pedal recess that will accommodate Minn Kota® or MotorGuide® trolling motor pedal

Minn Kota® Terrova® 36V, 101-lb. thrust, 60" (1.52 m) composite shaft, foot-control trolling motor w/Universal Sonar 2





Description



Watch out, walleye.

NITRO® now has your number, too!

Using input from the world’s leading walleye anglers, NITRO® is bringing its celebrated performance fiberglass boat heritage to a whole new group of anglers with the NEW ZV 21.

Big, bold and extremely beefy, this multi-species boat packs all the punch and rugged seaworthiness you need when heading out onto bigger waters.

It stands at an amazing 21’ 7” (6.58 m) long with a huge 100” (2.54 m) beam and 28” (71.12 cm) tall transom, ensuring it’s more than large enough to keep out the whitecaps.

And inside, the ZV 21 comes ready to please dedicated walleye, pike and muskie anglers alike with a multi-level center rod locker, heavy-duty trolling rails, Minn Kota® trolling motor with a 60” (1.52 m) shaft and a patent-pending storage for a net. It also features a long 26-gallon (98.42 L) livewell to accommodate big walleye, and aerated lift-out bait buckets fore and aft for live bait.

And when its time to race to the weigh-in, you’ll have up to 300 horses at your back and a steep Deep V at the bow to ensure you slice through the chop and make it back in plenty of time.

The ZV 21. A big boat for big-time fishing.





























  • Aggressive performance Deep V hull design to take on rough waters
  •























































  • Heavy-duty gunnel-mounted fore & aft trolling rails
  •























































  • Port & starboard drop-in aft storage boxes w/tackle tray holders
  •























































  • 26-gal. (98.42 L) aerated aft Guardian™ livewell w/bait bucket & 5.5-gal. (20.82 L) insulated bow baitwell w/removable bucket
  •























































  • Patent-pending port net storage
  •























































  • Deep port & starboard bow storage compartments
  •























































  • Dual consoles w/Lowrance® HDS-7 fishfinder w/GPS, easy-to-read instrumentation, port glovebox & space to mount extra electronics
  •























































  • 4-level, 8' (2.44 m) center rod locker
  •























































  • Minn Kota® Terrova® 36V, 101-lb. thrust, 60" (1.52 m) shaft trolling motor
  •























































  • Custom factory-matched trailer w/No Touch Vortex hubs, swing-away tongue & GALVASHIELD® protection
  •























































  •
  •























































  •
  •













    Specifications



    Length 21' 7''
    Beam 100"
    Bottom width 77"
    Max. recommended HP 350 HP
    Fuel capacity 64 Gallons
    Max. person capacity 6 Persons
    Max. person weight 1200 Lbs.
    Max. weight capacity 2500 Lbs.
    Depth inside 25"
    Transom height 28"
    Deadrise 18 Degrees
    Draft 18"
    Approx. weight 2900 Lbs.
    Approx. package weight 5500 Lbs.
    Package height 6' 9''
    Package width 8' 6''
    Storage length 24' 7''



























  • Length 21' 7''
    Bottom width 77"
    Max. recommended HP 350 HP
    Package width 8' 6''
    Fuel capacity 64 Gallons
    Deadrise 18 Degrees
    Draft 18"
    Beam 100"
    Approx. weight 2900 Lbs.
    Approx. package weight 5500 Lbs.
    Max. person capacity 6 Persons
    Depth inside 25"
    Transom height 28"
    Max. weight capacity 2500 Lbs.
    Max. person weight 1200 Lbs.
    Storage length 24' 7''
    Package height 6' 9''
  •















    Power / Motor

    Motor info coming soon!

    Options Features

    Standard Features



    Comfort, Convenience & Peace of Mind

    Non-skid bow mat
    Horn
    Fire extinguisher
    Flotation meets or exceeds NMMA & U.S. Coast Guard requirements
    Stainless steel bow & stern eyes
    EPA-compliant fuel system
    4 stainless steel pull-up cleats
    Stainless steel passenger grab handle
    Anti-fatigue matting below bow & cockpit carpet
    Emergency boarding ladder
    3 stainless steel drink holders
    Console(s)
    Soft-touch waterproof digital switches
    Custom-molded port & starboard modular consoles
    2-tone paint scheme
    Side-mounted courtesy light
    RAM®-mounted Lowrance® HDS-7 fishfinder w/GPS
    Speedometer, tachometer, voltmeter, fuel gauge, trim gauge & water pressure gauge
    Recess for optional Hot Foot® pedal
    Hydraulic steering w/custom tilt wheel
    Port & starboard below-console shelves
    Below-console footrest w/non-skid mat
    Oversized carpeted, lockable port glovebox
    Heavy-duty molded, tinted windscreens
    Space to mount additional electronics
    Construction & Exterior
    Heavy-duty rub rail
    Full-width fiberglass-encapsulated composite transom
    Transverse & longitudinal fiberglass foam-filled stringer system
    Deck & hull chemically bonded & mechanically fastened
    22-oz. (.62 kg) plush, marine-grade, cut pile carpet on decks & floor
    Hand-laid, heavy-duty performance hull w/reinforced sides
    Electrical
    Stowable navigation lights
    Water-resistant connectors on all pumps & navigation lights w/abrasion-protective wrap
    Console-mounted 12V outlet
    Electrical system w/Power Management Enclosure (PME)
    Automotive style, labeled fuse panel w/cover
    Manual lighting in bow storage compartments
    3 heavy-duty Insterstate® Series SRM-29 trolling batteries
    Heavy-duty Interstate® 27M-XHD starting battery
    Bow panel w/trolling motor receptacle & trim switch
    Twin 1,600 GPH (6,056.66 LPH) automatic bilge pumps
    4-bank (35 amps total) onboard battery charger w/exterior receptacle
    Trolling motor power distribution panel w/50-amp circuit breaker
    Master power switch
    Digital switching (except master power & accessory)
    Interior
    Carpet edge trim
    Elevated bow casting deck
    Insulated aluminum lids w/welded corners
    Bike seat w/power pedestal
    Lift-out, molded aft storage boxes that will accept tackle trays
    Starboard tool holder
    Between-console foldout storage drawer w/two 3600 tackle boxes
    Port & starboard bow lockers w/lid assists
    Patent-pending integrated port net holder
    Fold-down molded fishing seat w/power pedestal
    4-level center rod locker w/organizers for rods up to 8' (2.44 m) long
    Adjustable helm & passenger seats
    Stainless steel fore & aft rails (port & starboard)
    Port bow cooler w/removable tray
    Port & starboard midship insulated storage boxes designed to accept tackle trays
    Passenger rod ramp w/rod handle organizer & hold-down strap
    Room to mount additional electronics at bow
    Livewell Systems
    Insulated aluminum lids w/welded corners
    5.5-gal. (20.82 L) insulated bow baitwell w/removable bucket
    Rotomolded livewell w/rounded corners
    Oxygen generators (baitwell & livewell)
    Pump-out systems (baitwell & livewell)
    26-gal. (98.42 L) insulated aft Guardian™ anti-slosh livewell w/removable bait bucket
    Max-Air™ aeration system
    Two 750 GPH (2,839.06 LPH) recirculator pumps w/timers (1 for baitwell, 1 for livewell)
    Two 500 GPH (1,892.71 LPH) aerator/fill pumps w/timers (1 for baitwell, 1 for livewell)
    Performance
    Transom designed for Kicker motor application
    Deep V performance hull w/Rapid Planing System transom
    10" (25.40 cm) adjustable jack plate (OptiMax® engine only)
    3" (7.62 cm) adjustable jack plate (Verado® engines only)
    Lifting strakes to maximize overall handling & performance
    Rigging tube
    Stainless steel propeller
    Trailer
    Back-up/loading lights
    Carpeted bunks
    Submersible lights
    Powder-coat finish
    No Touch Vortex hub lubrication system
    Space-saving swing-away tongue
    Heavy-duty winch w/nylon strap & bow safety strap
    Custom-matched, color-coordinated, tandem-axle NITRO® trailer
    Built-in winch steps leading to bow deck
    All-welded tubular frame
    Steel fenders w/non-skid platforms
    Surge disc brakes on 2 axles
    Transom saver motor support
    Fold-up dolly jack
    14" (35.56 cm) custom aluminum wheels w/radial tires
    GALVASHIELD II corrosion protection
    Trolling Motor

    OPTIONS:

    Custom



    Custom color option $ 440
    Single console (removes standard port console) $-550
    Sony® sound system $ 750
    Remote oil fill (available w/OptiMax® engine only) $ 120
    SmartCraft® gauges (standard w/Verado® engines) $ 1,875
    Cushions & Seating



    Fishing chair & pedestal $ 315
    Smooth Moves seat suspension $ 900
    Hardware & Equipment



    KeelGuard (Black or White) $ 270
    Walk-thru windshield $ 940
    Aft deck rail $ 190
    Tournament ruler $ 85
    Kicker Motor



    Factory-installed 4.5-gal. (17.03 L) EPA-compliant fuel tank for Mercury® 15 ELHPT ProKicker & rigging bracket for starboard mounting (motor sold separately) $ 1,065
    Factory-installed 4.5-gal. (17.03 L) EPA-compliant fuel tank for Mercury® 9.9 ELHPT ProKicker & rigging bracket for starboard mounting (motor sold separately) $ 1,065
    Factory-installed fuel tank for Mercury® 9.9 or 15 ELPT FourStroke BigFoot ProKicker, remote & rigging bracket for starboard mounting w/OptiMax® rigging (motor sold separately) $ 1,870
    Factory-installed fuel tank for Mercury® 9.9 or 15 ELPT FourStroke BigFoot ProKicker, remote & rigging bracket for starboard mounting w/Verado® rigging (motor sold separately) $ 2,245
    Factory-installed Mercury® 15 ELPT FourStroke BigFoot ProKicker w/fuel tank, remote & rigging bracket w/OptiMax® rigging $ 6,275
    Factory-installed Mercury® 15 ELPT FourStroke BigFoot ProKicker w/fuel tank, remote & rigging bracket w/Verado® rigging $ 6,650
    Factory-installed Mercury® 9.9 ELPT FourStroke BigFoot ProKicker w/fuel tank, remote & rigging bracket w/OptiMax® rigging $ 5,960
    Factory-installed Mercury® 9.9 ELPT FourStroke BigFoot ProKicker w/fuel tank, remote & rigging bracket w/Verado® rigging $ 6,335
    Factory-rigged Mercury® 9.9 ELHPT ProKicker outboard w/4.5-gal. (17.03 L) EPA-compliant fuel tank & rigging bracket $ 5,125
    Factory-rigged Mercury® 15 ELHPT ProKicker outboard w/4.5-gal. (17.03 L) EPA-compliant fuel tank & rigging bracket $ 5,485
    Battery Charger (Exchange)



    GEN 2-bank, 10-amp + 3-bank, 10-amp charger $ 190
    Performance & Steering



    Lenco trim tabs $ 1,215
    Bravo One® prop $ 510
    Trailer



    Retractable transom tie down $ 85
    17" custom wheels w/spare tire $ 2,715
    Trolling Motor (Exchange)



    Minn Kota® Terrova™ 36V, 112-lb. thrust, 60" shaft trolling motor w/i-Link (compatible w/2 Humminbird® dash graphs, sold separately) $ 1,800
    Minn Kota® Terrova™ 36V, 112-lb. thrust, 60" shaft trolling motor w/i-Link (compatible w/Humminbird® bow graph, sold separately) $ 1,175
    Minn Kota® Terrova™ 36V, 112-lb. thrust, 60" shaft trolling motor w/i-Link (compatible w/Humminbird® dash graph, sold separately) $ 1,565
    Minn Kota® Terrova™ 36V, 112-lb. thrust, 60" shaft trolling motor w/i-Link (does not include connections for Humminbird® graphs) $ 1,095
    Minn Kota® Terrova™ 36V, 112-lb. thrust, 60" shaft trolling motor w/i-Pilot $ 625
    MotorGuide® TR109 Digital Tour Series 36V, 109-lb. thrust, 60" shaft trolling motor $-275
    MotorGuide® Xi5 36V, 105-lb. thrust, 60" shaft trolling motor $ 615
    Bow Graph



    Humminbird® ONIX 8CI SI RAM mount $ 4,925
    Humminbird® ONIX 10CI SI RAM mount $ 5,785
    Humminbird® 999c SI w/GPS & RAM mount $ 3,365
    Humminbird® 1199c SI w/GPS & RAM mount $ 4,615
    Lowrance® HDS-7 w/Insight™ & RAM mount $ 1,720
    Lowrance® HDS-7 Touch w/StructureScan® (dash StructureScan® must be chosen also) & RAM mount $ 3,675
    Lowrance® HDS-9 Touch w/StructureScan® (dash StructureScan® must be chosen also) & RAM mount $ 4,535
    Lowrance® HDS-12 Touch w/StructureScan® (dash StructureScan® must be chosen also) & RAM mount $ 6,720
    Dash Graph (Exchange)



    Humminbird® 999c SI w/GPS & RAM mount. $ 1,165
    Humminbird® 999c SI w/GPS mount (uninstalled) $ 1,020
    Humminbird® 1199c SI w/GPS & RAM mount. $ 2,425
    Humminbird® 1199c SI w/GPS mount (uninstalled) $ 2,270
    Humminbird® ONIX 8CI SI w/RAM mount $ 2,970
    Humminbird® ONIX 8CI SI mount (uninstalled) $ 2,740
    Humminbird® ONIX 10CI SI w/RAM mount $ 3,675
    Humminbird® ONIX 10CI SI mount (uninstalled) $ 3,285
    Lowrance® HDS-7 Touch w/StructureScan® & RAM mount $ 1,960
    Lowrance® HDS-7 Touch w/StructureScan® mount (uninstalled) $ 1,875
    Lowrance® HDS-7 w/Insight™, StructureScan® & RAM mount $ 1,145
    Lowrance® HDS-7 w/Insight™, StructureScan® mount (uninstalled) $ 1,020
    Lowrance® HDS-9 Touch w/StructureScan® & RAM mount $ 2,815
    Lowrance® HDS-9 Touch w/StructureScan® mount (uninstalled) $ 2,740
    Lowrance® HDS-12 Touch w/StructureScan® & RAM mount $ 5,085
    Lowrance® HDS-12 Touch w/StructureScan® mount (uninstalled) $ 4,845
    2nd Dash Graph



    Humminbird® ONIX 8CI SI GIMBAL mount $ 4,690
    Humminbird® ONIX 10CI SI GIMBAL mount $ 5,470
    Humminbird® 999c SI w/GPS & bracket mount $ 3,050
    Humminbird® 1199c SI w/GPS & bracket mount $ 4,220
    Lowrance® HDS-7 w/Insight™ & bracket mount $ 1,645
    Lowrance® HDS-7 Touch w/StructureScan® (dash-mounted unit w/StructureScan must be selected) & bracket mount $ 3,125
    Lowrance® HDS-9 Touch w/StructureScan® (dash-mounted unit w/StructureScan must be selected) & bracket mount $ 4,300
    Lowrance® HDS-12 Touch w/StructureScan® (dash-mounted unit w/StructureScan must be selected) & bracket mount $ 6,250
    Dealer installed option pricing does not include labor for installation.
    See your dealer for more details.

    Promotions

    Promotions info coming soon!
